	Ignition Delay Module – EVM-IDM3012
	Ignition Delay Module – EVM-IDM308VS


Brochure	Installation Manual

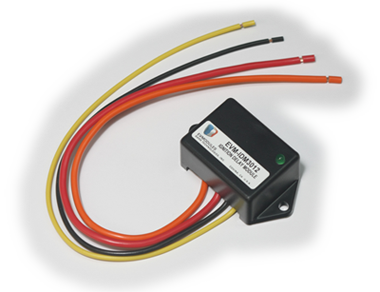

Ignition Delay Module – EVM-IDM3012

Eliminate dead vehicle batteries caused by power drain from 2-way radios, data terminals, and other mobile equipments which are often left on & forgotten. Allows emergency personnel to monitor voice & data traffic at a preset time after ignition shut-off.

The EVM-IDM3012 is a simple, microprocessor controlled ignition delay timer designed for the budget conscious user without sacrificing performance and features.

The compact footprint is the smallest & lightest on the market which presents more location placement options, including under dash, console, and police motorcycles.

Key Features:
	Low cost - Simple installation & features with most common time settings of 30 min, 1 hr, 2 hr time settings.
	Fully encapsulated - No exposed terminals or connectors to short out. Unique inverted design to guard switch settings.
	Compact size - Smallest delay timer available.Provides greater installation flexibility, mounts in tight places, even motorcycles where space is a premium
	Versatile - Connect directly to equipments, relays, or solenoid.
	Status LED - Indicates 4 functions at a glance. Off - stand-by - ignition on - timing.
	Splash & moisture resistant Microprocessor controlled Protected against load dumping

Specifications:
	2.5 oz	20 amp output
	L - 2” W - 1.5” H - 1”	Ignition sense
	7 mA standby

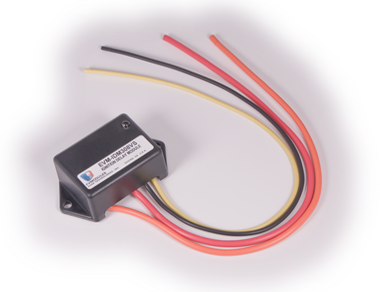

Ignition Delay Module – EVM-IDM308VS


Brochure	Installation Manual

Eliminate dead vehicle batteries caused by power drain from 2-way radios, data terminals, and other connected electrical loads which are often left on and forgotten. Using the EVM-IDM308VS allows vehicle operators to monitor voice and data traffic at a preset time after ignition shut-off.

Protects connected equipment automatically from alternator overcharge failures and excessive battery drain, overriding time settings.

The EVM-IDM308VS is a simple, microprocessor controlled ignition delay timer designed for the budget conscious user without sacrificing performance and features.

The compact footprint is the smallest and lightest on the market which presents more location placement options, including under dash, console, and police motorcycles.

Key Features:
	Low cost - Simple installation and features with most common time settings from 30 minutes to 8 hours.
	Fully encapsulated - No exposed terminals or connectors to short out. Unique inverted design to guard switch settings.
	Compact size - Smallest delay timer available. Provides greater installation flexibility, mounts in tight places.
	Versatile - Connect directly to equipments, relays, or solenoid.
	Over & Under voltage shut down protection – Protects battery & sensitive equipment.
	Dual Color LED - Indicates timing and voltage protection status.
	Splash & moisture resistant
	Microprocessor controlled voltage monitoring.
	Protected against load dumping
	Designed for all vehicles with 12vdc electrical systems

Specifications:
	2.8 oz	30 amp output
	L - 2” W - 1.5” H - 1”	Ignition & Alternator sense
	7 mA standby	Tolerance +/- 2%
